High Strength Fabric Divider Curtain with Electric Control System and Customizable Color for Sport Fields

High Strength Fabric Divider Curtain with Electric Control System and Customizable Color for Sport Fields

Marka Adı:	Flyon
Model Numarası:	bölücü perde
Moq:	50 m2
fiyat:	$46-98 per sqm
Ödeme Şartları:	T/T, Western Union
Tedarik Yeteneği:	> = Ayda 50000 m2

Ayrıntılı Bilgiler

Ürün Açıklaması

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Sertifika:

SGS

Malzeme:

Yüksek mukavemetli kumaş

Ateş Hızı:

GB-8624 (B2 seviyesi)

Çevresel performans:

GB-18586

Nefes alabilirlik:

>% 45

Yırtılma Direnci:

GB/T 3917.3-2009

Renk:

Özelleştirilebilir

Ambalaj bilgileri:

Ahşap kutular

Yetenek temini:

> = Ayda 50000 m2

Vurgulamak:

High Strength Fabric Divider Curtain

Electric Control System Dividing Curtain

Customizable Color Sport Field Curtain

Ürün Açıklaması

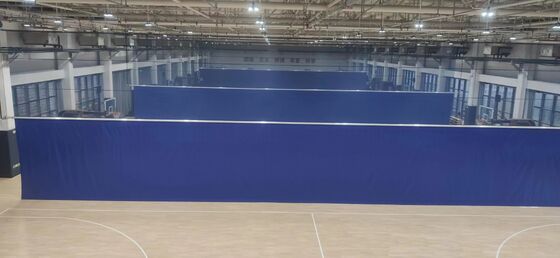

High Strength Fabric Divider Curtain with Electric Control System and Customizable Color for Sport Fields

Special discounts available for new and returning customers. Contact customer service for specific pricing details.

Single Curtain System Specifications

Product Name	Divider Curtain	Total Hanging Weight	≤ 2.5 kg/m
Maximum Height	12m	Hanging Spacing	≤ 3m
Maximum Width	36m	Maximum Bearing Capacity (per lifting point)	≤ 80kg
Maximum Area	300m²	Maximum Hanging Weight	≤ 750kg

Color Choices

Safety Requirements

A safety gap of at least 50 cm should be reserved between this partition curtain system and adjacent partitions or walls
A safety clearance of at least 15 cm should be maintained on the side without motor drive system
At least 5 cm ground clearance shall be reserved between the bottom of the partition curtain and the ground

Product Advantages

• Double layer curtain with high-quality PVC for superior sound absorption

• Partial netting design allows natural light transmission

• Complete system includes all necessary materials and segments with aluminum truss carrier structure

• User-friendly operation with various configuration options

• Fully tested and certified complete system

Sliding Track System

Our sliding track system features a range of profile track sizes and components that bolt together to facilitate smooth curtain movement for opening and closing operations. The track system can be configured as straight or curved to meet specific requirements, suitable for both internal and external applications with various bracket options for different mounting methods.

Electric Control System

High-performance drum motor (220V, 450W, 120N/M) with internal planetary gear reducer, up-and-down position brake limiter, push-button limit switch, automatic reset, and thermal overload protection system integrated in the middle winding drum. Ensures stable and reliable operation.

Frequently Asked Questions

How can we guarantee quality?

Pre-production samples provided before mass production; final inspection conducted before shipment.

What is your delivery time?

Flexible delivery schedules: approximately 5 working days for in-stock items and 25-35 working days for mass production orders.

Can you provide warranty?

Yes! We provide 5 years quality warranty and 10 years backup support.

Can I get your samples?

Yes! Flyon Sports offers free samples with approximately 5 days preparation time.

Do you provide OEM service?

Yes! We provide comprehensive OEM and ODM services.
